Number picker element

This element is a customizable number input element.

See examples

Properties

• ID

  Element identifier.
• Field type

  Specifies what kind of data this element represents.

  Note

  This property is only available in the CyberApp enablement form and the Customer enablement form.

  • Connection settings indicates that this information will be sent to the ISV servers but does not need to uniquely identify a user and is not sensitive information that must be stored and sent in a special way.
  • Additional settings

• Label

  Element label, located above the element.

  If Label is longer than the default element width can accomodate, the element width increases accordingly. (see examples)

• Width

  • Fit (see examples)

    Sets the width according to the combination of the Size and Label properties.
  • Fill (see examples)

    Uses all of the available width.

    For more information, see Element distribution.
• Minimum

  The minimum value for the field.

  The minimum possible value is -Infinity.
• Maximum

  The maximum value for the field.

  The maximum possible value is Infinity.
• Increment

  The value by which the counter increases and decreases.

  This can be set to a decimal value.
• Number prefix (see examples)

  A string added to the beginning of the numeric value.
• Number suffix (see examples)

  A string is added to the end of the numeric value.
• Integer only

  Toggle on for the input to only allow integers.

Examples

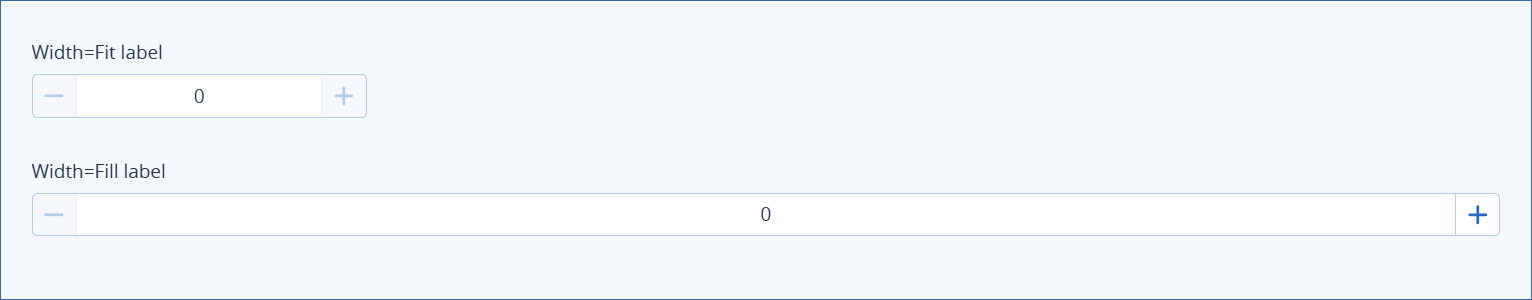

Width examples

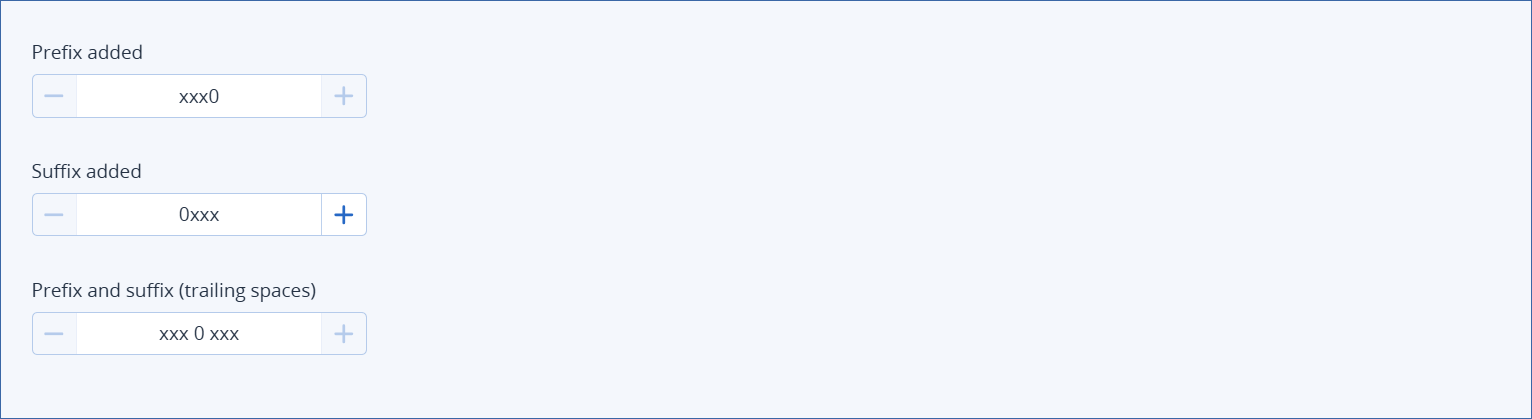

Prefix and suffix examples

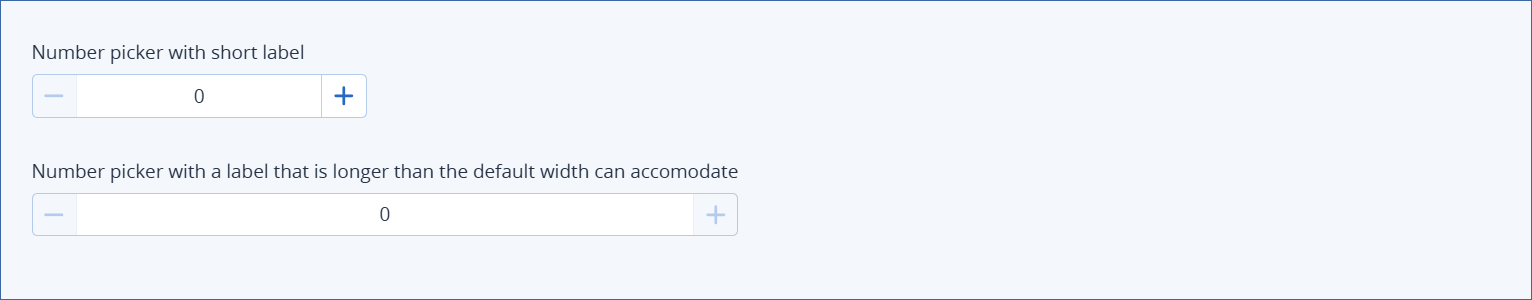

Label examples
